System with Air Gages

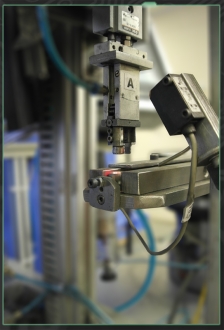

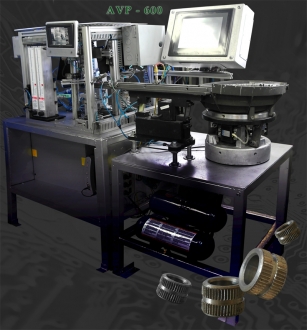

If it is internal features that need inspection, AVP - 600, our exceptionally accurate pick and place system fitted with air gages is
perfect for the job. Vision systems at two separate stations also check external features for defects.

Speed: 3 seconds per part
Tolerance level: ±0.0003 inches

Inspection Criteria

  • Internal diameter
  • Internal surface conditions
  • Presence/absence of features
  • Surface defects
  • Length
  • Diameter
  • Etc...

Standard Machine Includes:

  • 4 cameras, 2 per station
  • Bowl feeder
  • Pick and place handling
  • In-line track
  • PLC based controller
  • Touch screen interface
  • Automatic count
  • Quick change tooling

Optional Additions

  • Automatic packaging component
  • Eddy current inspection system for internal thread defects and internal cracks
